? Technical Parameter
Model | ICG6 | ICG10 | ICG16 | ICG25 | ICG40 | |
Full gauge size mm with built-in valve(L×B×H) | 334×231×322 | 410×331×450 | 504×432×562 | |||
Full gauge size mm External valve(L×B×H) | 334×231×556 | 410×311×692 | 504×432×806 | |||
Whole meter weight | 6kg | 22kg | 35kg | |||
Joint thread | M64×2 | M80×3 | ||||
Center distance (S) | 220mm | 320mm | ||||
Display | Gas meter | Remaining gas volume, cumulative usage, fault code, valve status, battery status, etc | ||||
Amount table | Remaining amount, cumulative usage, cycle usage, and on balance sheet date Fault code, step status, valve status, battery status | |||||
Sampling method | Pulse sampling | Double pulse sampling | ||||
Power supply mode | Alkaline battery | More than 12 months (4 sections with 6V) | ||||
Card Type | contact | 4442 card, CPU card, Bluetooth card, NFC card | ||||
Working current | static state | 1<20uA | ||||
IC card holder | durability | n≥10^5次 | ||||
actuator | durability | n≥10^5次 | ||||
Built-in valve | durability | n≥10^5次 | ||||
work environment | operation temperature | -20℃~+40℃ | ||||
Applicable gas source | Natural gas, liquefied petroleum gas, pipeline gas, etc | |||||
Model | IWG10 | IWG16 | IWG25 | IWG40 |
Full Table Sizemm Built-in valve | 334×231×322 | 410×381×450 | 504×432×562 | |
Full Table Sizemm(L×B×H) External valve | 334×231×556 | 410×381×692 | 504×432×806 | |
Whole meter weight | 6kg | 22kg | 35kg | |
Joint thread | M64×2 | M80×3 | ||
center distance(S) | 220mm | 320mm | ||
Communication method | telecommunications | NB-loT、GPRS、LORAWAN | ||
Communication performance | Distance/Time | No distance limit | ||
Communication characteristics | Active/Passive | Timed automatic communication, real-time communication with buttons | ||
data acquisition | Auto/Manual | Remote collection and automatic upload | ||
Sampling method | Pulse/Direct Reading | Dual pulse sampling, photoelectric direct reading sampling | ||
Power supply mode | Alkaline/lithium batteries | 4 alkaline batteries (service life>18 months) and lithium batteries (service life>10 years) | ||
Payment Method | Pre payment/post payment | WeChat recharge, Alipay recharge, official account recharge, automatic recharge, UnionPay recharge | ||
? process characteristics

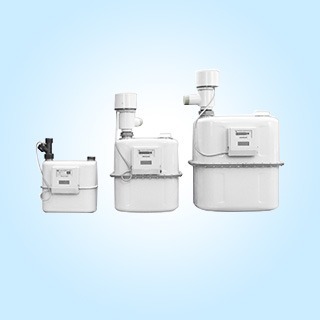

Sapphire Industrial and Commercial Gas Meters Meet Different Flow Requirements for Industrial and Commercial Users
Featuring high measurement accuracy, overall miniaturization, and stable operation
Products are not only simple measuring instruments, but also an organic part of smart cities
? Product Features
Ultra low power consumption、data protection、Built-in anti-theft protection
Table ladder、Idle protection、Supports Bluetooth card payment
Arrears protection、fault indication、 Support NFC payment
Flow protection、temperature compensation、Support for payment by storage machines
